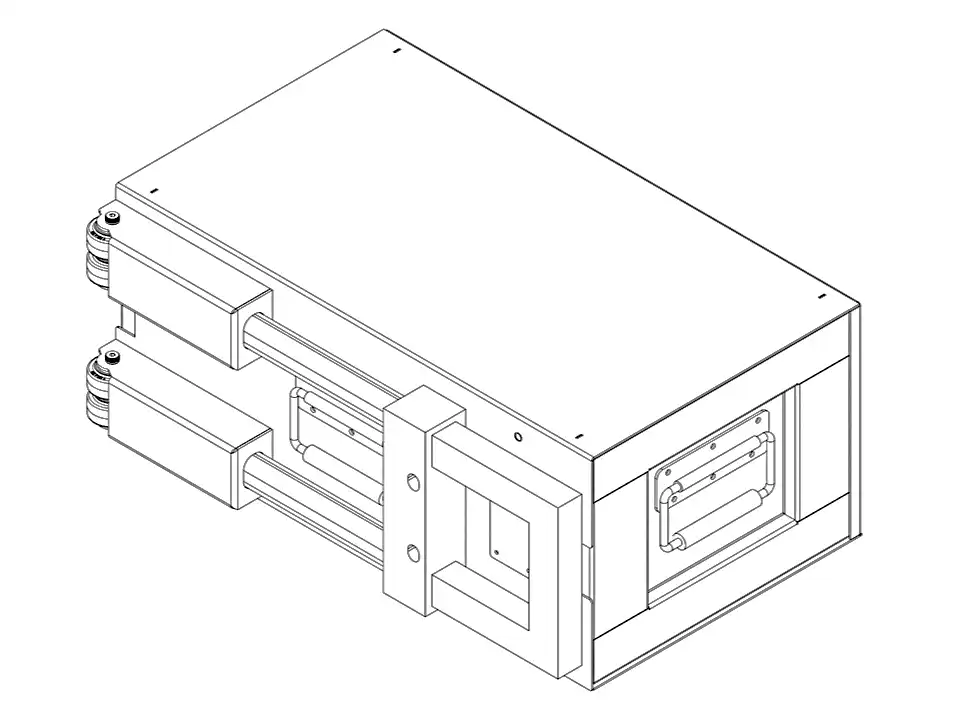

Portable TuffTek

Airline Transportation Association (ATA) carry-on size compliant.

Designed for Mobility

The Portable TuffTek is engineered for personnel who need to transport sensitive computing equipment on commercial flights. Compliant with the Airline Transportation Association (ATA) carry-on size limits, this case ensures your mission-critical systems never leave your sight.

With a lightweight aluminum chassis, entendable handle, and wheels, the Portable TuffTek offers the perfect balance between protection and portability.

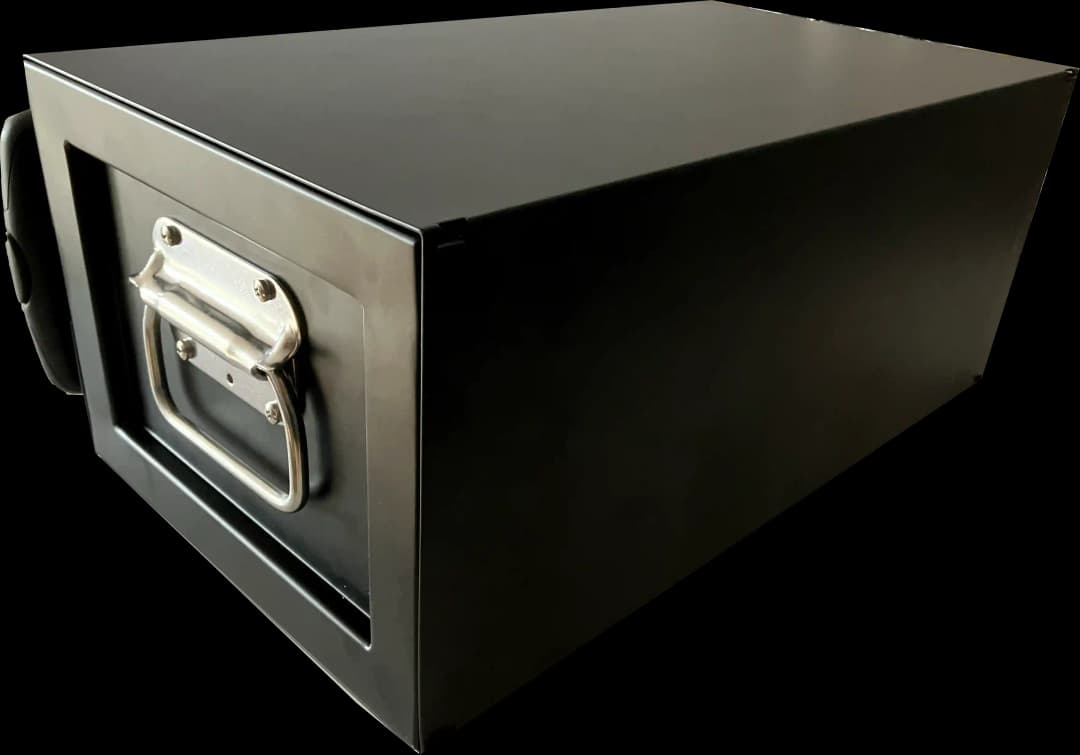

Physical Specifications

The Carry-On Case offers excellent protection while maintaining an ATA compliant form factor.

Dimensions [D x W x H]: 545mm x 353mm x 228mm (21.5" x 14" x 9")
Weight: ~28 KG (~62 LBS) Loaded
Operating Temperature: built for extreme cold and heat
Ingress Protection: Air and Water-tight

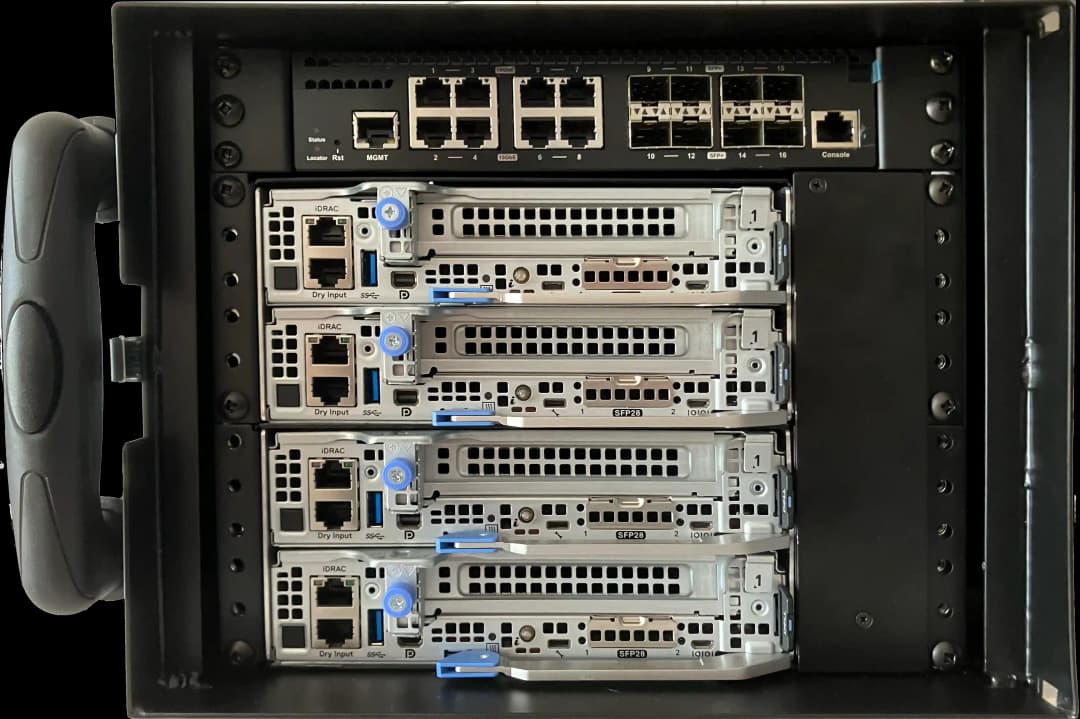

Internal Configuration

The Carry-On Case is designed to accomodate the DELL PowerEdge XR8000 Series, and features 5 Rack Units of mountable space.

Rack Dimensions [D x W x H]: 457mm x 240mm x 222mm (18" x 9.45" x 8.75")
Rack Units: 5RU of mountable rack space
PDU: Integrated Power Distribution Unit
Security: Slot for the TACLANE-Nano (KG-175N) Encryptor

Hardware Configurations

Choose from a variety of configurations to meet your operational requirements.

Switch

XR8610T

Switch

XR8610T

XR8620T

Switch

XR8620T

Dell PowerEdge XR8610T

Form Factor: Half-width 1U server sled for XR8000 chassis
Processor: 4th Generation Intel Xeon Scalable processor - up to 32 cores
Memory: Up to 512GB DDR5 RDIMM (8 DIMM slots)
Memory Speed: Up to 4800 MT/s
PCIe: 1 FHHL PCIe Gen5 x16 slot

Dell PowerEdge XR8620T

Form Factor: Half-width 2U server sled for XR8000 chassis
Processor: 4th Generation Intel Xeon Scalable processors - up to 32 cores
Memory: Up to 512GB DDR5 RDIMM (8 DIMM slots)
Memory Speed: Up to 4800 MT/s
PCIe: 1 FHHL PCIe Gen5 x16 slot
PCIe 2 FHFL PCIe Gen5 x16 slots
